Huitian Electronic Adhesive Solutions
Huitian Electronic Adhesive connects the world from Power Supply to Smart Homes, from LED to 3C Electronics, and from Motor control to Communication Electronics, featuring high viscosity, high-temperature resistance, high thermal conductivity, and other characteristics.

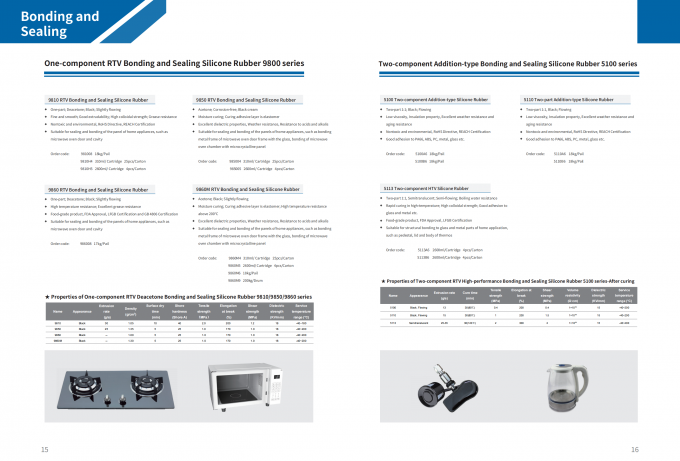

Bonding and Sealing
| Name | Appearance |  Density(g/cm3) |
 Surface drytime (min) |
Hardness (Shore A) |
Tensile strength （MPa） |
 Elongation atbreak (%) |
 Shearstrength (MPa) |
Dielectric strength (KV/mm) |
 Servicetemperature range ( °C) |
|||||||||||||||||||||||||||||
| 9131 | Red flowing | 1.00 | 15 | 25 | 0.8 | 150 | 0.8 | 20 | -40~260 | |||||||||||||||||||||||||||||
| 9132 | Red semi-flowing | 1.25 | 10 | 30 | 1.8 | 250 | 1.5 | 17 | -40~260 | |||||||||||||||||||||||||||||
| 9133 | Red cream | 1.30 | 10 | 45 | 2.4 | 200 | 1.8 | 17 | -40~260 | |||||||||||||||||||||||||||||
| Name | Appearance | Viscosity (mPa.s) |
Density (g/cm3) |
Surface dry time (min) |
Hardness (Shore A) |
Tensile strength （MPa） |
Elongation at break (%) |
Shear strength (MPa) |
Dielectric strength (KV/mm) |
Service temperature range (°C) |
|||||||||||||||||||||||||||||||||
| 9210 | Black flowing | 1300 | 1.05~1.15 | ≤30 | 25~35 | ≥0.8 | ≥150 | 0.8 | 16 | -40~180 | |||||||||||||||||||||||||||||||||
| 9211 | White flowing | 6000 | 1.15 | 15 | 30 | 0.3 | 80 | N/A | 15 | -40~180 | |||||||||||||||||||||||||||||||||
| 9212 | Translucent, low viscosity |
3000 | 1 | 15 | 30 | 1.0 | 150 | 1.0 | 20 | -40~180 | |||||||||||||||||||||||||||||||||
| 9220 | Black, medium viscosity |
25000 | 1.10 | 12 | 30 | 0.5 | 200 | N/A | 16 | -40~180 | |||||||||||||||||||||||||||||||||
| Name | Appearance | Viscosity (mPa.s) |
Density (g/cm3) |
