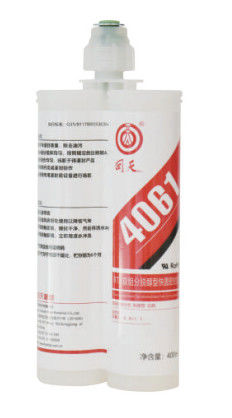

4061 Dealcoholized RTV Condensation-Type Silicone For PV Module Junction Box Sealing

4061 Dealcoholized RTV Condensation-Type Silicone For PV Module Junction Box Sealing

4061 Dealcoholized RTV Condensation-Type Silicone For PV Module Junction Box Sealing

Product Details:
Place of Origin: Shanghai of China
Brand Name: Huitan
Certification: RoHS
Model Number: 4061
Detail Information
Place of Origin:
Shanghai of China
Brand Name:
Huitan
Certification:
RoHS
Model Number:
4061
Type:
Two-component RTV Silicone Sealant
Cure System:
Dealcoholized
Appearance:
White Semi-flowing
Mix Ratio:
1:1
Part A Viscosity:
250,000 MPa·s
Part A Density:
1.47 G/cm³
Part B Viscosity:
350,000 MPa·s
Part B Density:
1.45 G/cm³
Tack-free Time:
10 Mins
Tensile Strength:
2.5 Mpa
Elongation At Break:
450 %
Al Shear Strength:
2.0 Mpa
Hardness (shore A):
48
Volume Resistivity:
5.0×10^14 Ω·cm
Dielectric Strength:
20 KV/mm
Work Temperature:
-60~200 ℃
High Light:
PV Module Sealing Condensation Cure Silicone , RTV Condensation Type PV Sealant , Dealcoholized RTV Silicone Sealant
Trading Information
Minimum Order Quantity:
500kg
Price:
Negotiation
Packaging Details:
Part A/B 25kg/Bucket; 275kg/Drum
Delivery Time:
3-7days
Payment Terms:
T/T, L/C
Supply Ability:
8000T/Month
Product Description

4061 (Mix ratio 1-1)TDS-EN.pdf

4061 (1:1) is a two-component, white sealing adhesive silicone rubber. It features rapid deep-curing properties and cures at room temperature. It is forming strong adhesion within a short time.



Product Features

1) Fast curing, no glue spillage

Only 30min initial setting time

lmproving the efficiency of production lines

2) Easy to control ratio, good resistance to fluctuating ratios

3) Dealcoholized cure system

Greener choice



Applications

Suitable for PV module frame sealing and junction box bonding, especially for steel frame and large-size modules



Packaging

25kg/Bucket          2pcs/Carton;

275kg/Drum          2pcs/Tray.
