9415 High-Performance Silicone Conformal Coating For Electronics Eco-Friendly -60°C To 200°C Operating Range 5 MPa Coating Strength Such As Automotive Aerospace Energy Storage Etc

9415 High-Performance Silicone Conformal Coating For Electronics Eco-Friendly -60°C To 200°C Operating Range 5 MPa Coating Strength Such As Automotive Aerospace Energy Storage Etc

Product Details:

Place of Origin:	China
Brand Name:	HUITIAN
Certification:	RoHS REACH UL: E310258
Model Number:	9415

Detail Information

Place of Origin:

China

Brand Name:

HUITIAN

Certification:

RoHS REACH UL: E310258

Model Number:

9415

Appearance:

Colorless To Light Yellow Transparent Liquid

Viscosity:

400-10,00 MPa·s

Density:

0.86-0.97 G/c㎡

Solid Content:

30-55%

Tack-free Time:

＜15min

Curing Time:

5min@50℃; 2hrs@20℃

Operating Temperature:

-60℃ To 200℃

Flame Resistance:

UL94V-0

Highlight:

Automotive Silicone Conformal Coating , Electronics Silicone Conformal Coating , 200°C Silicone Conformal Coating

Trading Information

Minimum Order Quantity:

10kg

Price:

Negotiation

Packaging Details:

18kg/barrel

Delivery Time:

3-7days

Payment Terms:

L/C, T/T

Supply Ability:

100T/Month

Product Description

9415 (9415LV) TDS-EN-R.pdf

Product Introduction

HUITIAN^® 9415LV Silicone Conformal Coating is a high-performance protective solution designed for electronic components. This advanced silicone-based coating offers exceptional insulation, moisture resistance, and protection against environmental factors such as dust, corrosion, and temperature fluctuations. It is engineered to ensure the long-term reliability and performance of electronic devices in various harsh conditions.

Typical Applications

HUITIAN^® 9415LV is versatile and suitable for a wide range of applications, including:

- Protection of circuit boards and electronic components against harsh environments

- Use in chemical corrosion, salt spray, humidity, high pollution, dust, and vibration conditions

- Ideal for industries such as automotive, aerospace, energy storage, and high-power electronics

Product Features

- Superior Protection: Provides comprehensive protection against moisture, dust, and corrosion.

- Environmental Compliance: RoHS Compliant, ensuring environmental safety.

- High Performance: Offers high dielectric strength and volume resistivity for electrical insulation.

- Fast Curing: Quick tack-free time and curing time for efficient production processes.

- UV Indicator: Includes a UV indicator for easy quality control and coating effect checking.

- Eco-Friendly: Formulated to be more eco-friendly, aligning with sustainable manufacturing practices.

Technical Specifications

Property	Specification
Appearance	Colorless to light yellow transparent liquid
Viscosity, mPa.s	400-10,000
Density, g/cm³	0.86-0.97
Solid Content	30-55%
Tack-free Time	<15 min
Curing Time at 20°C	2 hrs
Hardness, Shore D	20-30
Dielectric Strength (kV/mm)	≥16
Dielectric Constant (1.2MHz)	2.8
Volume Resistivity (Ohm/cm)	≥1.0×10^15
Linear Expansion Coefficient (DMA)	≥1.0×10^15

Directions for Use

Guide for use: 9415LV can be applied via spray coating, dip coating or brush coating. The application environment should be well-ventilated. Before application, the substrate should be thoroughly cleaned to remove residual fluxes and other contaminants, so that the conformal coating can well cover and protect the substrate. The storage place should be kept ventilated.

Spray coating: Spraying according to different spraying equipment and construction environment in order to get the right dry film thickness.

Dip coating: According to the requirements, submerge the sample plate vertically in the liquid for about 10s until the bubbles on the surface of the sample plate disappear, and then slowly raise the sample plate.

Brush coating: Apply by brushing according to the actual situation in order to get the right dry film thickness.

CHECK: 9415LV contains a UV indicator for easy checking of the coating effect on the sample.

Packaging and Storage Conditions

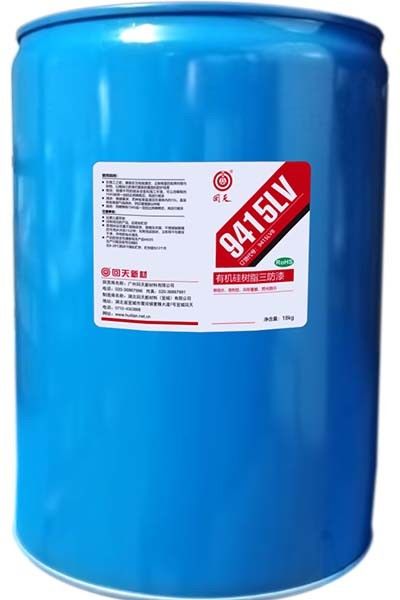

- Packaging: Available in 18kg/barrels.

- Storage: Store at 8-28°C in a cool and dry place. Shelf life is 12 months.

Safety Information

- Keep away from children.

- Store in a sealed container.

- In case of accidental exposure, rinse with water and consult the MSDS for further safety information.

9415 High-Performance Silicone Conformal Coating For Electronics Eco-Friendly -60°C To 200°C Operating Range 5 MPa Coating Strength Such As Automotive Aerospace Energy Storage Etc 0

HUITIAN® 9415LV Silicone Conformal Coating is a reliable and efficient solution for protecting electronic components against environmental challenges. Its high-performance features and compliance with environmental standards make it an ideal choice for various industries seeking to enhance the durability and lifespan of their electronic products.
