5297(A7B7) TDS-EN.pdf
5297 is a 1:1 two-component addition-type potting silicone rubber, with 1.5 W /m·K thermal conductive, flame retardant.
Applications
All kinds of electrical components of thermal conductivity, flame retardant potting, such as photovoltaic inverters, LED drive power.charging piles, automotive electronics, NEV power, controllers etc.
Product Features
1) High thermal conductivity and flowability
2) Both room temperature and heat curing
3) Good weather and aging resistance
4) Excellent insulation properties
5) Flame retardant UL94V-0
6) Maintains rubber elasticity from -50°C to 200°C
7) RoHS Directive
Technical parameters
| Reference standard1 |
Item |
Unit |
Value |
| Properties before curing (25±2℃, 60±5%RH) |
| Q/HTXC 2 |
Appearance (A) |
- |
Grey fluid |
| |
Appearance (B) |
- |
White fluid |
| GB/T2794 |
Viscosity (A) |
mPa·s |
3,500-4,500 |
| |
Viscosity (B) |
mPa·s |
3,000-4,000 |
| GB/T13354 |
Viscosity (A) |
g/cm3 |
2.55±0.05 |
| |
Viscosity (B) |
g/cm3 |
2.55±0.05 |
| Properties after curing (25±2℃, 60±5%RH, A:B=1:1) |
| Q/HTXC 2 |
Operating time |
min |
＞30 |
| Q/HTXC 2 |
Curing time (25℃) |
h |
≤3 |
| Q/HTXC 2 |
Curing time (80℃) |
min |
30 |
| GB/T 531 |
Hardness (Shore A) |
-- |
30-40 |
| Q/HTXC 2 |
Dielectric strength |
KV/mm |
≥18 |
| Q/HTXC 2 |
Volume resistivity |
Ω·cm |
≥1.0×1014 |
| GB/T 528-92 |
Tensile Strength |
MPa |
0.94 |
| GB/T 528-92 |
Elongation |
% |
56 |
| GB/T 7124 |
Shear Strength |
MPa |
0.7 |
| GB/T 1034 |
Water absorption |
% |
＜0.1 |
| ISO 22007-2 |
Thermal conductivity |
W/(m·K) |
1.5±0.1 |
| ASTM E831 |
CLTE @25-150℃ |
μm/(m·℃) |
162.6 |
Cautions
Store the product in a sealed container, and keep it away from children for storage.
The glue will not cure if exposed to a certain amount of the following chemicals:
Organic compounds of N, P, and S, ionic compounds of Sn, Pb, Hg, As, etc.;
Compounds containing alkyne and polyvinyl.
To avoid the above problem, Any residual rosin on the circuit board should be wiped clean when using the glue, and use soldering tin with low lead content.
This product is non-hazardous. Please consult the MSDS of the product for safety information.
Packaging

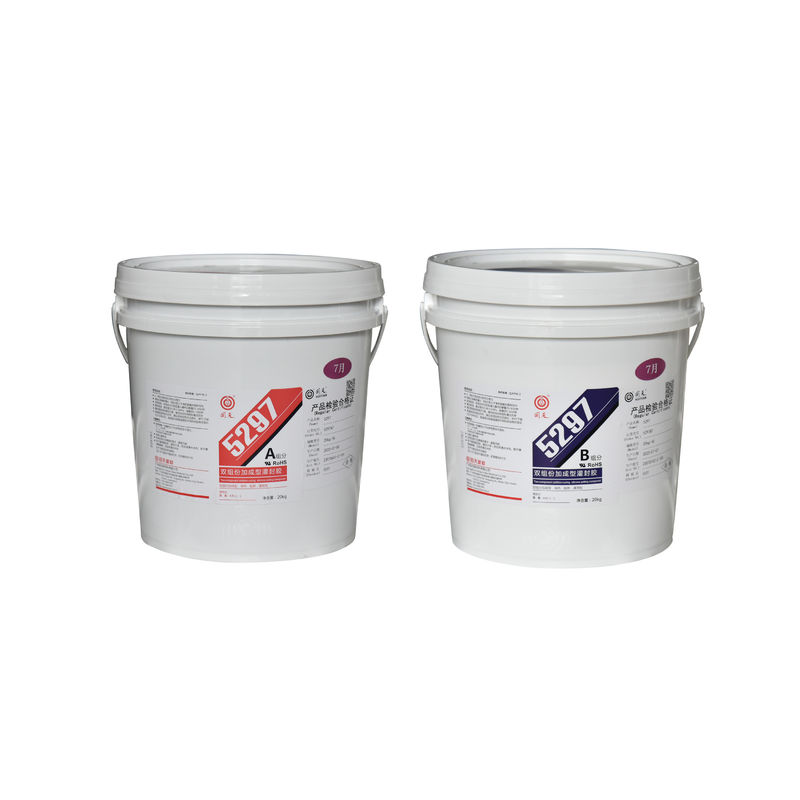

20kg/barrel
HUITIAN Addition-type potting production line
Case Show
Magnetic Device Heat Conducting and Protection 529X Series
Huitian potting adhesive integrating the structural and thermal characteristics of magnetic devices can be tailored to match products with different modulus and heat-conducting property. It can provide good protection and thermal insulation for devices, such as inductors and transformers, effectively preventing problems such as core cracking and excessive temperature rise.
- 1.0~4.0W/(m·K) products are optional
- Low modulus and low CTE
- Self-adhesion
